Sense Amplifier [10]

During the read cycle, the bit-lines are initially precharged by bit-line load transistors. When the selected word-line is activated, one of the two bit-lines is pulled low by driver transistor, while the other stays high. The bit-line pull-down speed is very slow due to the small cell size and large bit-line load capacitance. Differential sense amplifiers are used for speed purposes because they can detect and amplify a very small level difference between two bit-lines. Thus, a fast sense amplifier is an important factor in realizing fast access time.

Figure 52.12 shows a switching scheme of well-known current-mirror sense amplifiers [14]. Two amplifiers are serially connected to obtain a full supply voltage swing output because one stage of the amplifier does not provide enough gain for a full swing. The signal ΦSA is generated with an ATD pulse. It is asserted for a period of time, enough to amplify the small difference on data lines; then it is deactivated and the amplified output is latched. Hence, the switch reduces the power consumption, especially at relatively low frequencies.

A latch-type sense amplifier such as a PMOS cross-coupled amplifier [15], as shown in Figure 52.13, greatly reduces the dc current after amplification and latching, because the amplifier provides a nearly full supply voltage swing with positive feedback of outputs to PMOSFETs. As a result, the current in the PMOS cross-coupled sense amplifier is less than one fifth of that in a current-mirror amplifier. Moreover, this positive feedback effect gives much faster sensing speed than the conventional amplifier. To obtain correct and fast operation, the equalization element EQL is connected between the output terminals and are turned on with pulse signals ΦS and its complement during the transition period of the input signals.

However, the latch-type sense amplifier has a large dependence on the input voltage swing, especially at low current operation conditions. An NMOS source-controlled latched sense amplifier [16] as shown in Figure 52.14 is able to quickly amplify an input voltage swing as small as 10 mV. The sense amplifier consists of two PMOS loads, two NMOS drivers, and two feedback inverters. The sense amplifier control (SAC) signal is driven by the CS input buffer, and ΦS is a sense-amplifier equalizing pulse generated by the ATD pulse. The gate terminal of the NMOS driver is connected to the local data bus (LD1 and LD2), and the source terminal of the NMOS driver is controlled by the feedback inverter

connected to the opposite output node of sense amplifier. Thus, the NMOS driver connected to the high-going output node turns off immediately. Therefore, the charge-up time of that node can be reduced because no current is wasted in the NMOS driver.

A bidirectional sense amplifier, called a bidirectional read/write shared sense amplifier (BSA) [17], is shown in Figure 52.15. The BSA plays three roles. It functions as a sense amplifier for read operations, and it serves as a write circuit and a data input buffer for write operations. It consists of an 8-to-1 column selector and bit-line precharger, a CMOS dynamic sense amplifier, an SR flip-flop, and an I/O circuit.

Eight bit-line pairs are connected to a CMOS dynamic sense amplifier through CMOS transfer gates. The BLSW signal is used to select a column and to precharge bit-lines. When the BLSW signal is high, one of eight bit-line pairs is connected to the sense amplifier. When the BLSW signal is low, all bit-line pairs are precharged to VDD level. The SAEQB signal controls the sense amplifier equal- ization. When the SAEQB signal is low, sense nodes D and DB are equalized and precharged to the VDD level. The SENB signal activates the CMOS dynamic sense amplifier. The SR flip-flop holds the result. The output circuit consists of four p-channel transistors. If the result is high, I/O is connected to VDD (3.3 V) and IOB is connected to VDD (3 V) through p-channel devices. VDDL is a 3-V power supply provided externally. The I/O pair is connected to the sense amplifier through p-channel transfer gates controlled by ISWB. During write operations, ISWB falls to connect the I/O pair to the sense amplifier.

Figure 52.16 shows operational waveforms of the BSA. At the beginning of the read operations, after some intrinsic delay from the rising edge of the SACLK, data from the selected cell is read onto the bit-line pair. At the same time, the BLSW and the SAEQB rise. One of the eight CMOS transfer gates is turned on, the bit-line pair is connected to sense nodes D and DB, and precharging of the CMOS sense amplifier and bit-line pair is terminated. After the signal on the bit-line pair signal is sufficiently developed, the BLSW falls to disconnect the bit-line pair from the sense nodes D and DB. At the same time, the SENB falls to activate the sense amplifier. After the differential output data is latched onto the SR flip-flop, the SAEQB falls to start the equalization of the bit-line pair and the CMOS sense amplifier.

At the beginning of the write operations, after some delay from the rising edge of SACLK, the ISWB signal falls, and the differential I/O pair is directly connected to the sense amplifier through p-channel transfer gates. After the signals D and DB are sufficiently developed, ISWB turns off the p-channel transfer gates to disconnect the sense amplifier from the I/O pair. At the same time, the SENB falls to sense the data, and BLSW rise to connect the sense amplifier to the bit-line pair. After the data is written into

the selected memory cell, SAEQB and BLSW fall to start equalization of the bit-line pair and the CMOS sense amplifier.

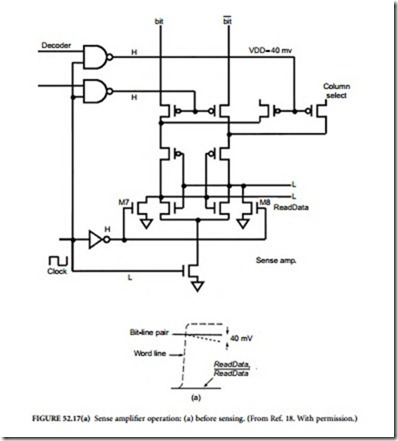

Conventional sense amplifiers operate incorrectly when threshold voltage deviation is larger than bit-line swing, a current-sensing sense amplifier proposed by Izumikawa et al. in 1997 can continue to operate normally [18]. Figure 52.17 illustrates the sense amplifier operations. Bit-lines are always charged up to VDD through load PMOSFETs. When memory-cells are selected with a word-line, the voltage difference in a bit-line pair appears (Figure 52.17(a)). During this period, all column-select PMOSFETs are off, and no dc current flows in the sense amplifier. The sense amplifier differential outputs, referred to as ReadData, are equalized at ground level through pull-down NMOSFETs M7 and M8.

After a 40-mV difference appears in a bit-line pair, power switch M9 of the sense amplifier and one column-select pair of PMOSFETs are set to on (Figure 52.17(b)). The difference in bit-line voltages causes a current difference between the differential pair PMOS in the sense amplifier, which appears as an output voltage difference. This voltage difference is amplified, and the read operation is accomplished. The current is automatically cut off because of the CMOS inverter. Consequently, the small bit-line swing is sensed without dc current consumption.
