Flash Memory System

Applications and Configurations

Flash memory is a single-transistor memory with floating gate for storing charges. Since 1985, the mass production of Flash memory has shared the market of non-volatile memory. The advantages of high density and electrical erasable operation make Flash memory an indispensable memory in the applications of programmable systems, such as network hubs, modems, PC BIOS, microprocessor-based systems, etc. Recently, image cameras and voice recorders have adopted Flash memory as the storage media. These applications require battery operation, which cannot afford large power consumption. Flash memory, a true non-volatile memory, is very suitable for these portable applications because stand-by power is not necessary. In the interest of portable systems, the specification requirements of Flash memory include some special features that other memories (e.g., DRAM, SRAM) do not have. For example, multiple internal voltages with single external power supply, power-down during stand-by, direct execution, simultaneous erase of multiple blocks, simultaneous re-program/erase of different blocks, precise regulation of internal voltage, embedded program/erase algorithms to control threshold voltage. Since 1995, an emerging need of Flash memory is to increase the density by doubling the number of bits per cell. The charge stored in the floating gate is controlled precisely to provide multi-level threshold voltage. The information stored in each cell can be 00, 01, 10, or 11. Using multi-level storage can decrease the cost per bit tremendously. The multi-level Flash memories have two additional requirements: (1) fast sensing of multi-level information, and (2) high-speed multi-level programming. Since the memory cell characteristics would be degraded after cycling, which leads to fluctuation of programmed states, fast sensing and fast programming are challenged by the variation of threshold voltage in each level.

Another development is analog storage of Flash memory, which is feasible for image storage and voice record. The threshold voltage can be varied continuously between the maximum and minimum values to meet the analog requirements. Analog storage is suitable for recording the information that can tolerate distortion between the storing information and the restored information (e.g., image and speech data).

Before exploring the system design of Flash memory, the major differences between Flash memory and other digital memory, such as SRAM and DRAM, should be clarified. First, multiple sets of voltages are required in Flash memory for programming, erase, and read operations. The high-voltage related circuit is a unique feature that differs from other memories (e.g., DRAM, SRAM). Second, the characteristics of Flash memory cell are degrading because of stress by programming and erasing. The control- ling of an accurate threshold voltage by an internal finite state machine is the special function that Flash memory must have. In addition to the mentioned features, address decoding, sense amplifier, and I/O driver are all required in Flash memory. The system of Flash memory, as a result, can be regarded as a simplified mixed-signal product that employs digital and analog design concepts.

Figure 54.26 shows the block diagram of Flash memory. The word-line driver, bit-line driver, and source-line driver control the memory array. The word-line driver is high-voltage circuitry, which includes a logic X-decoder and level shifter. The interface between the bit-line driver and the memory array is the Y-gating. Along the bit-line direction, the sense amplifier and data input/output buffer are in charge of reading and temporary storage of data. The high-voltage parts include charge-pumping and voltage regulation circuitry. The generated high voltage is used to proceed programming and erasing operations. Behind the X-decoder, the address buffer catches the address. Finally, a finite state machine, which executes the operation code, dictates the operations of the system. The heart of the finite state machine is the clocking circuit, which also feeds the clock to a two-phase generator for charge-pumping circuits. In the following sections, the functions of each block will be discussed in detail.

Finite State Machine

A finite state machine (FSM) is a control unit that processes commands and operation algorithms. Figure 54.27(a) demonstrates an example of an FSM. Figure 54.27(b) shows the details of an FSM. The command logic unit is an AND-OR-based logic unit that generates next state codes, while the state register latches the current state. The current state is related to the previous state and input state. State transitions follow the designated state diagram or state table that describe the functionality to translate state codes into controlling signals that are required by other circuits in the memory. The tendency to develop Flash memories goes in the direction of simultaneous program, erase, and read in different blocks. The global FSM takes charge of command distribution, address transition detection (ATD), and data input/output. The address command and data are queued when the selected FSM is busy. The local FSM deals with operations, including read, program, and erase, within the local block. The local FSM is activated and completes an operation independently when a command is issued. The global FSM manages the tasks distributing among local FSMs according to the address. The hierarchical local and global FSM can provide parallel processing; for instance, one block is being programmed while the other block is being erased. This feature of simultaneous read/write reduces the system overhead and speeds up the Flash memory. One example of the algorithm used in the FSM is shown in Figure 54.28. The global FSM loads operating code (OP code) first, then the address transition detection (ATD) enables latch of the address when a different but valid address is observed. The status of the selected block is checked if the command can be executed right away, whereas the command, address, and/or data input are stored in the queues. The queue will be read when the local FSM is ready for executing the next command. The operation code and address are decoded. Sense amplifiers are activated if a read command is issued. Charge-pumping circuits are back to work if a write command is issued. After all preparations are made, the process routine begins, which will be explained later. Following the completion of the process routine, the FSM checks its queues. If there is any command queued for delayed operation, the local FSM reads the queued data and continues the described procedures. Since these operations are invisible to the external systems, the system overhead is reduced.

The process routine is shown in Figure 54.29. The read procedure waits for the completion signal of the sense amplifier, and then the valid data is sent immediately. The programming and erasing operations require a verification procedure to ascertain completion of the operation. The iteration of program- verification and erase-verification proceeds to fine-tune the threshold voltage. However, if the verification

time exceeds the predetermined value, the block will be identified as a failure block. Further operation to this block is inhibited. Since the FSM controls the operations of the whole chip, a good design of the FSM can improve the operational speed.

Level Shifter

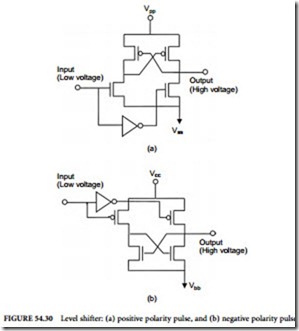

The level shifter is an interface between low-voltage and high-voltage circuits. Flash memory requires high voltage on the word-line and bit-line during programming and erasing operations. The high voltage appearing in a short time is regarded as a pulse. Figure 54.30 shows an example of a level shifter. The input signal is a pulse in Vcc/ground level, which controls the duration of a high-voltage pulse. The supply of the level shifter determines the output voltage level of the high-voltage pulse. The level shifter is a positive feedback circuit, which turns stable at the ground level and supply voltage level (high voltage is generated from charge-pumping circuits). The operation of the level shifter can be realized as follows. The low-voltage input can only turn off the NMOS transistor but cannot turn off the PMOS parts. On the other hand, high voltage can only turn off the PMOS transistor. Therefore, generation of two mutually inverted signals can turn off the individual loading path and provide no leakage current during stand- by. The challenges of the design are the transition power consumption and the possibility of latch-up.

The delay of the feedback loop will result in large leakage current flowing from the high-voltage supply to ground. The leakage current is similar to the transition current of conventional CMOS circuits, but larger due to the delay of the feedback loop. As the large leakage current occurs due to generated substrate current by hot carriers, the level shifter is susceptible to latch-up. The design of the level shifter should focus on speeding up the feedback loop and employing a latch-up-free apparatus. More sophisticated level shifters should be designed to provide tradeoff between switching power and the switching speed.

The level shifter is used in the word-line driver and the bit-line driver if the bit-line requires a voltage larger than the external power supply. The driver is expected to be small because the word-line pitch is nearly minimum feature size. Thus, the major challenges are to simplify the level shifter and to provide a high-performance switch.

Charge-Pumping Circuit

The charge-pumping circuit is a high-voltage generator that supplies high voltage for programming and erasing operations. This kind of circuit is well-known in power equipment, such as power supplies, high- voltage switches, etc. A conventional voltage generator requires a power transformer, which transforms

input power to output power without loss. In other words, low voltage and large current is transformed to high voltage and low current. The transformer uses the inductance and magnetic flux to generate high voltage very efficiently. However, in the VLSI arena, it is difficult to produce inductors and the charge- pumping method is used instead. Figure 54.31 shows an example of a charge-pumping circuit that consists of multiple-stage pumping units. Each unit is composed of a one-way switch and a capacitor. The one- way switch is a high-voltage switch that does not allow charge to flow back to the input. The capacitor stores the transferred charge and gradually produces high voltage. No two consecutive stages operate at the same time. In other words, when one stage is transferring the charge, the next stage and the previous stage should serve as an isolation switch, which eliminates charge loss. Therefore, a two-phase clocking signal is required to proceed with the charge-pumping operation, producing no voltage drop between the input and output of the switch and large current drivability of the output. In addition, the voltage level must be higher than the previous stage. Therefore, the two-phase clocking signal must be level- shifted to individual high voltages to turn on and off the one-way switch in each pumping unit. A smaller charge-pumping or a more sophisticated level-shift circuit can be employed as self-boosted parts. The generated high voltage, in most cases, is higher than the required voltage. A regulation circuit, which can generate stable voltage and is immune to the fluctuation of external supply voltage and the operating temperature, is used to regulate the voltage and will be described later.

Sense Amplifier

The sense amplifier is an analog circuit that amplifies small voltage differences. Many circuits can be employed—from the simplest two-transistor cross-coupled latches to the complicated cascaded current-mirrors

sense amplifiers. Here, a symbolic diagram is used to represent the sense amplifier in the following discussion. The focus of the sensing circuit is on multi-level sensing, which is currently the engineering issue in Flash memory. Figures 54.32(a) and (b) show the schemes of parallel sensing and consecutive sensing, respectively. These two schemes are based on analog-to-digital conversion (ADC). Information stored in the Flash memory can be read simultaneously with multiple comparators working at the same time. The outputs of the comparators are encoded into N digits for 2N levels. Figure 54.32(b) shows the consecutive sensing scheme. The sensing time will be N times longer than the parallel sensing for 2N levels. The sensing algorithm is a conventional binary search that compares the middle values in the consecutive range of interest. Only one sense amplifier is required for a cell. In the example, the additional sense amplifier is used for speeding up the sensing process. The second-stage sense amplifier can be pre-charged and prepared while the first-stage sense amplifier is amplifying the signal. Thus, the sensing time overhead is reduced.

When a multi-level scheme is used, the threshold voltage should be as tight as possible for each level. The depletion of unselected cells is strictly inhibited because the leakage current from unselected cells will destroy the true signal, which leads to error during sensing. Another challenge in multi-level sensing is the generation of reference voltages. Since the reference voltages are generated from the power supply, the leakage along the voltage divider path is unavoidable. Besides, the generated voltages are susceptible to the temperature variation and process-related resistance variation. If the variation of reference voltages cannot be minimized to a certain value, the ambiguous decision would be made for multi-level sensing due to unavoidable threshold spread for each level. Therefore, to provide high-sensitivity sense amplifier and to generate precise and robust reference voltages are the major developing goals for more than four- level Flash memory.

Voltage Regulator

A voltage regulator is an accurate voltage generator that is immune to temperature variation, process- related variation, and parasitic component effects. The concept of voltage regulation arises from the temperature-compensated device and the negative feedback circuits. Semiconductor carrier concentration and mobility are all dependent on the ambient temperature. Some devices have positive temperature coefficients, while others have negative coefficients. We can use both kinds of devices to produce a composite device for complete compensation. Figure 54.33 shows two back-to-back connected diodes that can be insensitive to the temperature over the temperature range of interest, if the doping concen- tration is properly designed. The forward-bias diode is negatively sensitive to temperature: the higher the temperature, the lower the cut-in voltage. On the other hand, the reverse-bias diode shows a reverse characteristic in the breakdown voltage. When connecting the two diodes and optimizing the diode characteristics, the regulated voltage can be insensitive to temperature. Nevertheless, the generated voltage is usually not what we want. A feedback loop, as shown in Figure 54.34, is needed to generate precise programming and erasing voltage. The charge-pumping output voltage and drivability are functions of

the two-phase clocking frequency. The pumping voltage can be scaled to be compared with the precise voltage generator to provide a feedback signal for the clocking circuit whose frequency can be varied. With the feedback loop, the generated voltage can be insensitive to temperature. Whatever the desired output voltage is, the structure can be applied in general to produce temperature-insensitive voltage.

Y-Gating

Y-gating is the decoding path of bit-lines. The bit-line pitch is as small as the minimum feature size. One register and one sense amplifier per bit-line is difficult to achieve. Y-gating serves as a switch that makes multiple bit-lines share one latch and one sense amplifier. Two approaches — indirect decoding and direct decoding —used as the Y-gating are shown in Figures 54.35(a) and (b), respectively. Regarding the indirect decoding, if 2N bit-lines are decoded using one-to-two decoding unit, the cascaded stages are required with N decoding control lines. However, when the direct decoding schemes is used, 2N bit- lines require 2N decoding lines to establish a one-to-2N decoding network, and the pre-decoder is required to generate the decoding signal. The area penalty of indirect decoding is reduced but the voltage drop along the decoding path is of concern. To avoid the voltage drop, a boosted decoding line should be used to overcome the threshold voltage of the passing transistor. Another approach to eliminate voltage drop is the employment of a CMOS transfer gate. However, the area penalty arises again due to well-to-well isolation. Since Flash memory is very sensitive to the drain voltage, the boosted decoding control lines, together with the indirect decoding scheme, are suggested.

Page Buffer

A page buffer is static memory (SRAM-like memory) that serves as a temporary storage of input data. The page buffer also serves as temporary storage of read data. With the page buffer, Flash memory can increase its throughput or bandwidth during programming and read, because external devices can talk to the page buffer in a very short time without waiting for the slow programming of Flash memory. After the input data is transferred to the page buffer, the Flash memory begins programming and external devices can do other tasks. The page size should be carefully designed according to the applications. The larger the page size, the more data can be transferred into Flash memory without having to wait for the completion of programming. However, the area penalty limits the page size. There exists a proper design of page buffer for the application of interest.

Block Register

The block register stores the information about the individual block. The information includes failure of the block, write inhibit, read inhibit, executable operation, etc., according to the applications of interest. Some blocks, especially the boot block, are write-inhibited after first programming. This prevents virus injection in some applications, such as PC BIOS. The block registers are also Flash memory cells for storing block information, which will not disappear after power-off. When the local FSM is working on a certain block, the first thing is to check the status of the block by reading the register. If the block is identified as a failure block, no further operation can be made in this block.

Summary

Flash memory is a system with mixed analog and digital systems. The analog circuits include voltage- generation circuits, analog-to-digital converter circuits, sense amplifier circuits, and level-shifter circuits. These circuits require excellent functionality but small area consumption. The complicated analog designs in the pure-analog circuit do not meet the requirements of Flash memory, which requires large array efficiency, large memory density, and large storage volume. Therefore, the design of these analog circuits tends toward reduced design and qualified function. On the other hand, the digital parts of Flash memory are not as complicated as those digital circuits used in pure digital signal process circuits. Therefore, the mixed analog and digital Flash memory system can be implemented in a simplified way. Furthermore, Flash memory is a memory cell-based system. All the functions of the circuits are designed according to the characteristics of the memory cell. Once the cell structure of a memory differs, it will result in a completely different system design.
