Pro Electron system of semiconductor labelling

The Pro Electron system of semiconductor labelling, used by most European manufacturers, describes a device by means of a code comprising two letters and a serial number. Letters define the semiconductor material used and the device’s general function:


Serial numbers define the device’s particular application and consist of either: three numbers (which shows the device is intended for use primarily in consumer applications) or; a letter followed by two numbers (which shows the device is intended for use primarily in industrial or professional environments).

Range numbers

Where variants of a device exist, the above code is addended with a further code (separated by a hyphen) to identify the specific device type within the range. Two classes of device are affected:
(a) Rectifier diodes and thyristors; figures indicate either the repetitive peak inverse voltage, VRRM, or the repetitive peak off-state voltage, VDRM, whichever is the lowest.
(b) Voltage regulator diodes and transient suppression diodes; a first letter (voltage regulator diodes only) indicates operating voltage tolerance, where: A = ± 1%; B = ± 2%; C = ± 5%; D = ± 10%; E = ±15% and a group of figures indicates the typical operating voltage (or the maximum recommended stand-off voltage, in the case of transient suppressor diodes).
In all cases, a final letter (R) may be used, to indicate a reverse polarity version (i.e. one with a stud anode).

Abbreviations and symbols

Many abbreviations are found as either capital or lower case letters, depending on publishers’ styles. Symbols should generally be standard, as shown.

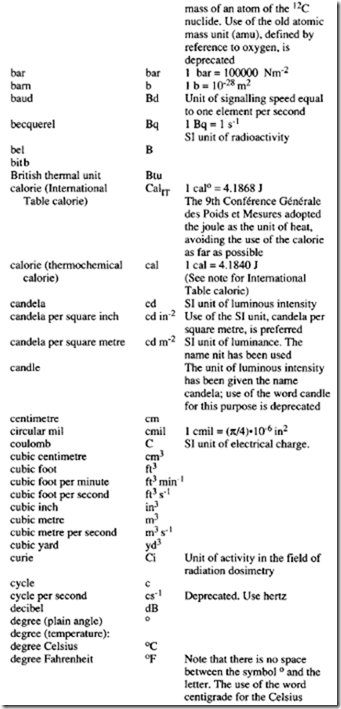

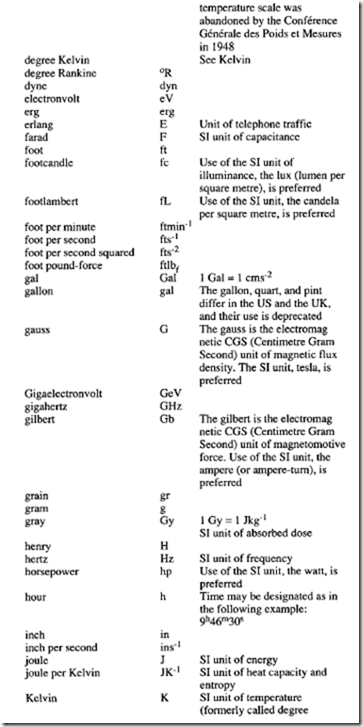

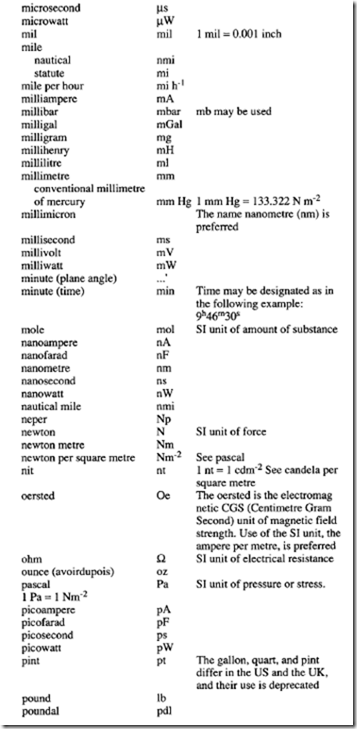

Letter symbols by unit name









Comments
