Standard frequency and time transmissions


Standard frequency formats


Boundaries of sea areas

As used in BBC and BT weather forecasts

Stations whose latest reports are broadcast in the 5 minute forecasts on Radio 2 (200 kHz) at 0033, 0633 and 1755 (daily), 1155 (Sundays) and 1355 (weekdays).

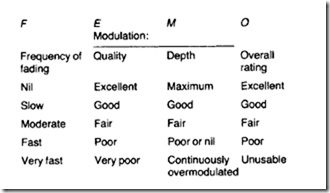

The SINPFEMO code

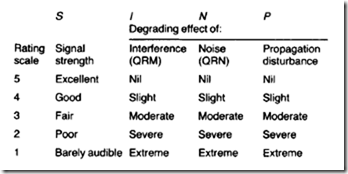

The SINPO code


The SIO code



BBC AM radio stations



UK CB radio

27 MHz band: 27-60125 to 27-99125 MHz.
40 channels at 10 kHz spacing.
Max. e.r.p. 2W; max. transmitter output 4W.
Aerial: single rod or wire, l-5m overall length, base loaded. If mounted higher than 7m, transmitter output to be reduced at least lOdB.
Modulation: F.M. only, deviation ± 2-5 kHz max.
934 MHz band: 934 025 to 934-975 MHz.
20 channels at 50kHz (may be reduced to 25 kHz later). If synthesizer used spacing may be 25 kHz on precise channel frequencies specified.
Max. e.r.p. 25 W; max. transmitter output 8W; if aerial integral, max. e.r.p. 3 W.
Aerial: may have up to four elements, none exceeding 17cm. If mounted higher than 10m, transmitter output to be reduced at least lOdB.
Modulation: FM only, deviation ± 5 0kHz max.
Spurious emissions: For both bands, not exceeding 0·25ìë¥, except for specified frequency bands where the limit is 50nW.
For full specifications see publication MPT 1320 (27 MHz) and MPT 1321 (934 MHz) from HMSO.
