Common transistor and diode data

By -

Common transistor and diode data

Zener diodes

BZYSSC series

Tolerance:± 5% Maximum dissipation: 500 mW

Rangevalues:2.7V;3V;3.3V;3.6V;3.9V;4.3V;4.7V;5.1V;5.6V;

.2V;6.8V;7.5V;8.2V;9.1V;IOV;llV;12V;13V;15V;16V;18V;20V;22V;24V;27V;30V

BZX 85 series

Tolerance: ± 5% Maximum dissipation: 1.3 W

Range values: 2.7V;3.0V;3.3V;3.6V;3.9V;4.3V;4.7V;5.1 V;5.6V; 6.2V;6.8V

BZX 61 series

Tolerance: ± 5% Maximum dissipation: 1.3 W

Range values: 4.7V;5.1 V;5.6V;6.2V;6.8V;7.5V;8.2V;9.1 V;10V; 11V; 12V;13V;15V;16V;18V;20V;22V;24V;27V;30V;33V;36V; 39V;43V;47V;51V;56V;62V;68V;75V

IN5333 series

Tolerance:± 5% Maximum dissipation: 5 W

Range values: 3.3V ;3.9V;4.7V;5.6V;6.8V;8.2V;9.1V; IOV; 12V;15V;24V

Bridge rectifier encapsulations


Common transistor and diode data

Rectifiers/diodes


Common transistor and diode data

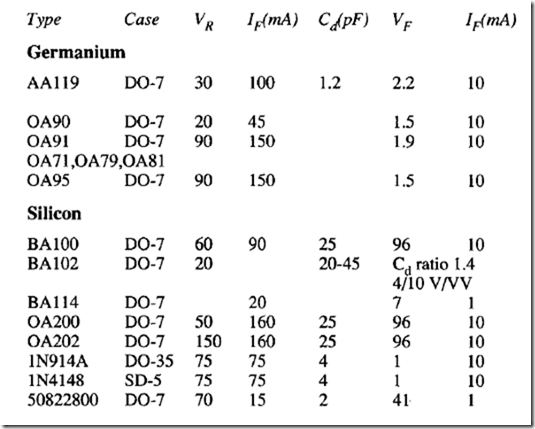

Diodes


Use

Transient protected (controlled avalanche)

General purpose rectifier

Automobile heavy duty

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

General purpose rectifier

Transient protected (controlled avalanche)

Transient protected (controlled avalanche)

Transient protected (controlled avalanche)

Transient protected (controlled avalanche)

General purpose stud mount

General purpose stud mount


Voltage regulator data

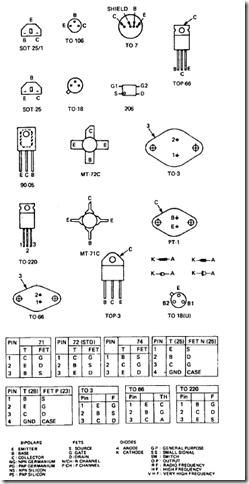

Transistor and diode encapsulations

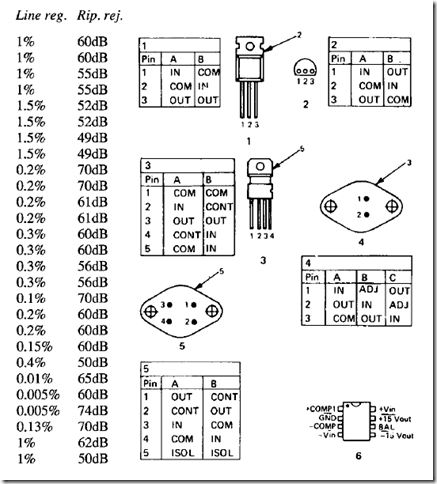

Voltage regulator encapsulations
